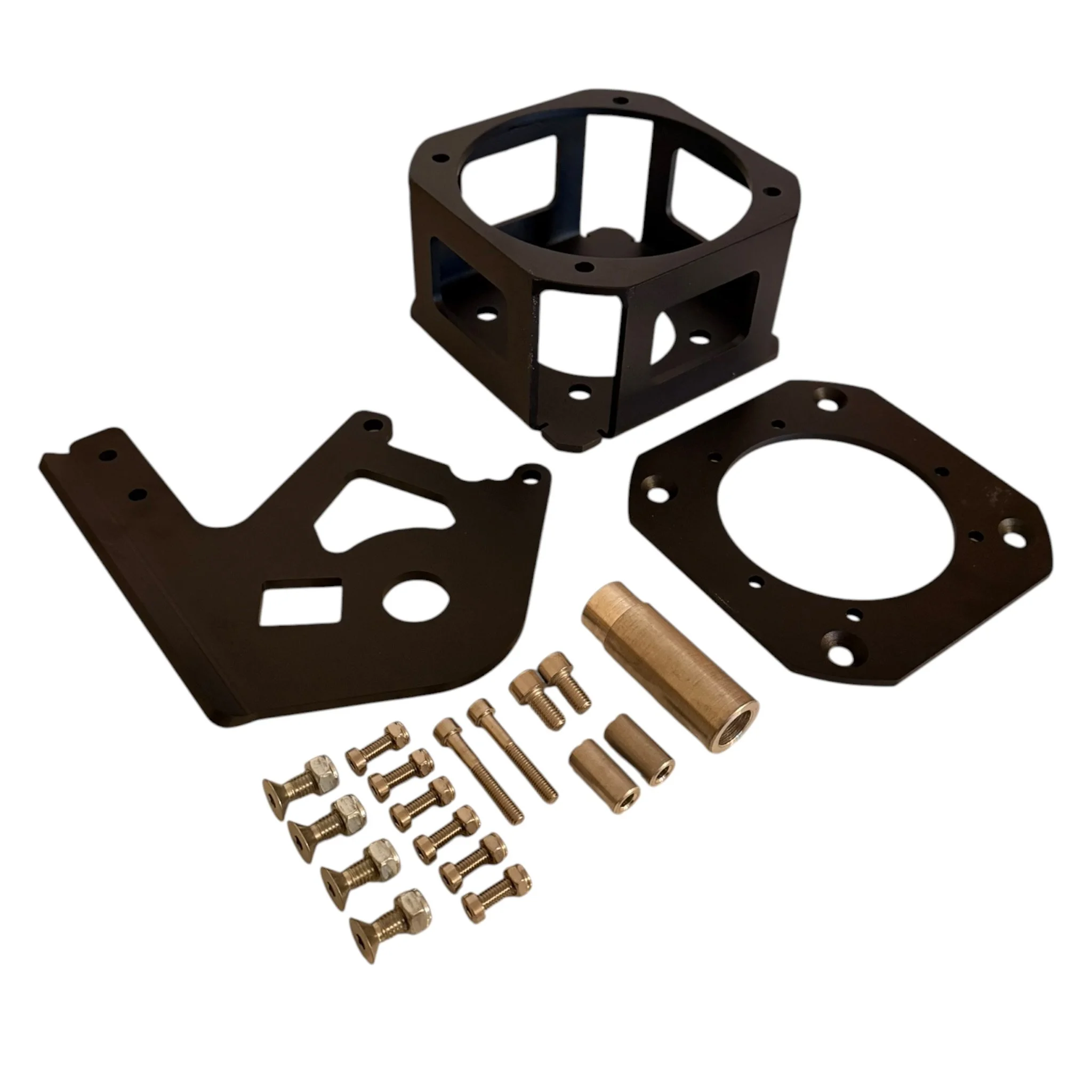

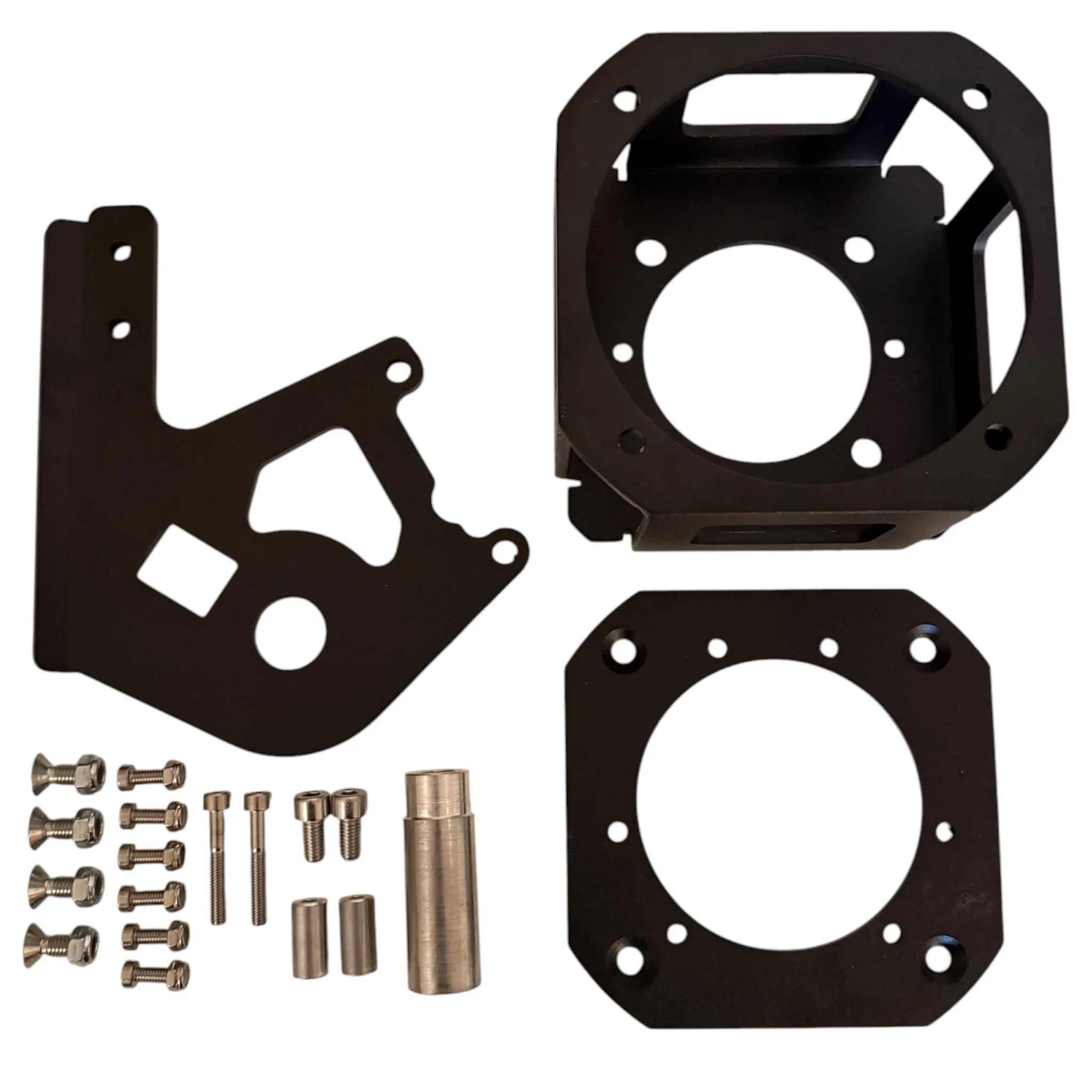

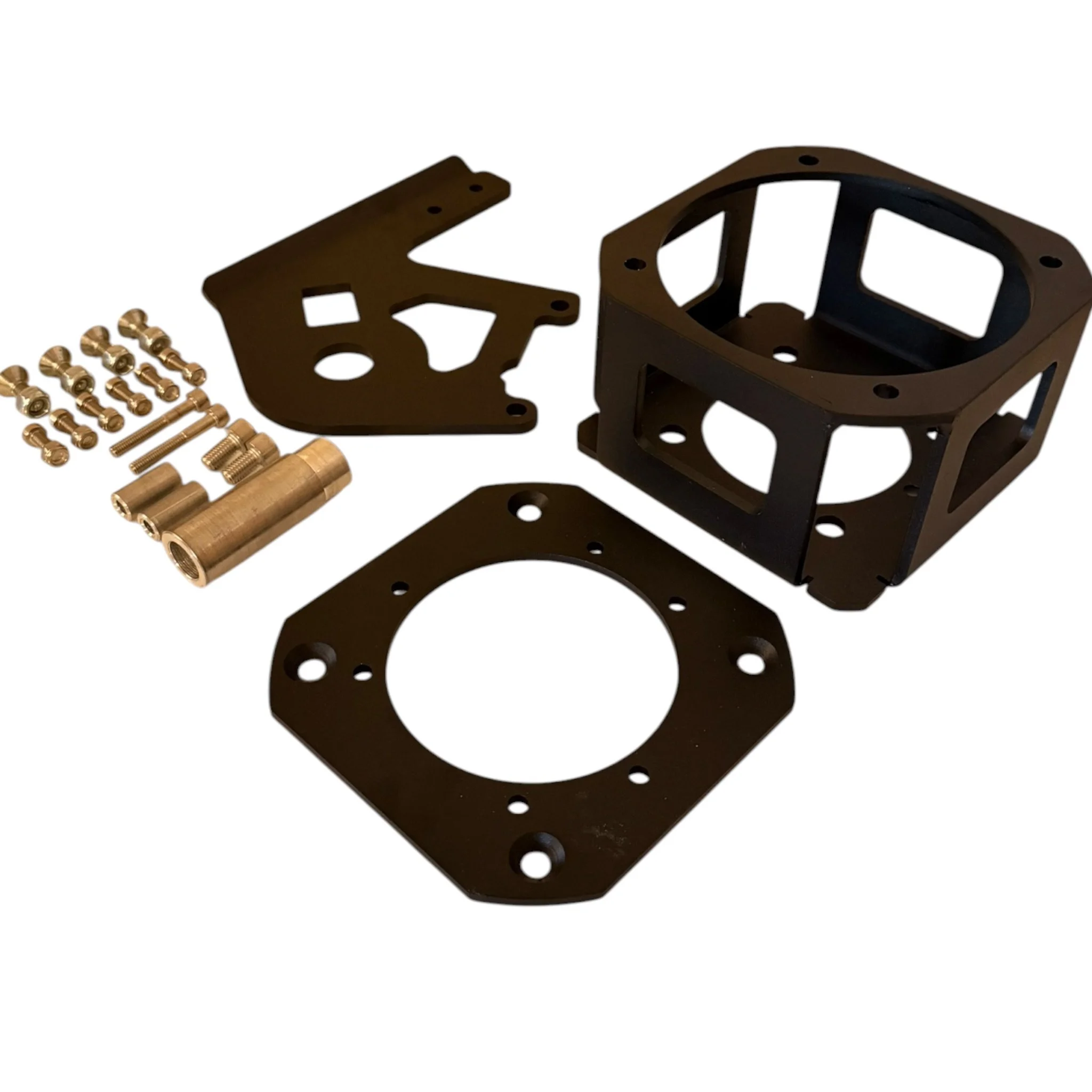

Are you tired of constantly working on your old drum brakes? It's time to upgrade to the Swamp Outlaw Disc Brake Kit! This kit includes the steel brackets and all the necessary hardware to install.
Brake components are sold separately and listed below! This gives you the option to run OEM Honda components or the replacement parts available online.
This is a simple bolt in kit with no cutting or welding required.
The FRONT disc brake kit fits the 1985-87 Honda ATC 250SX
NOTE: Will NOT work with the factory 9” Wheel. Requires 12” or larger Diameter Wheel

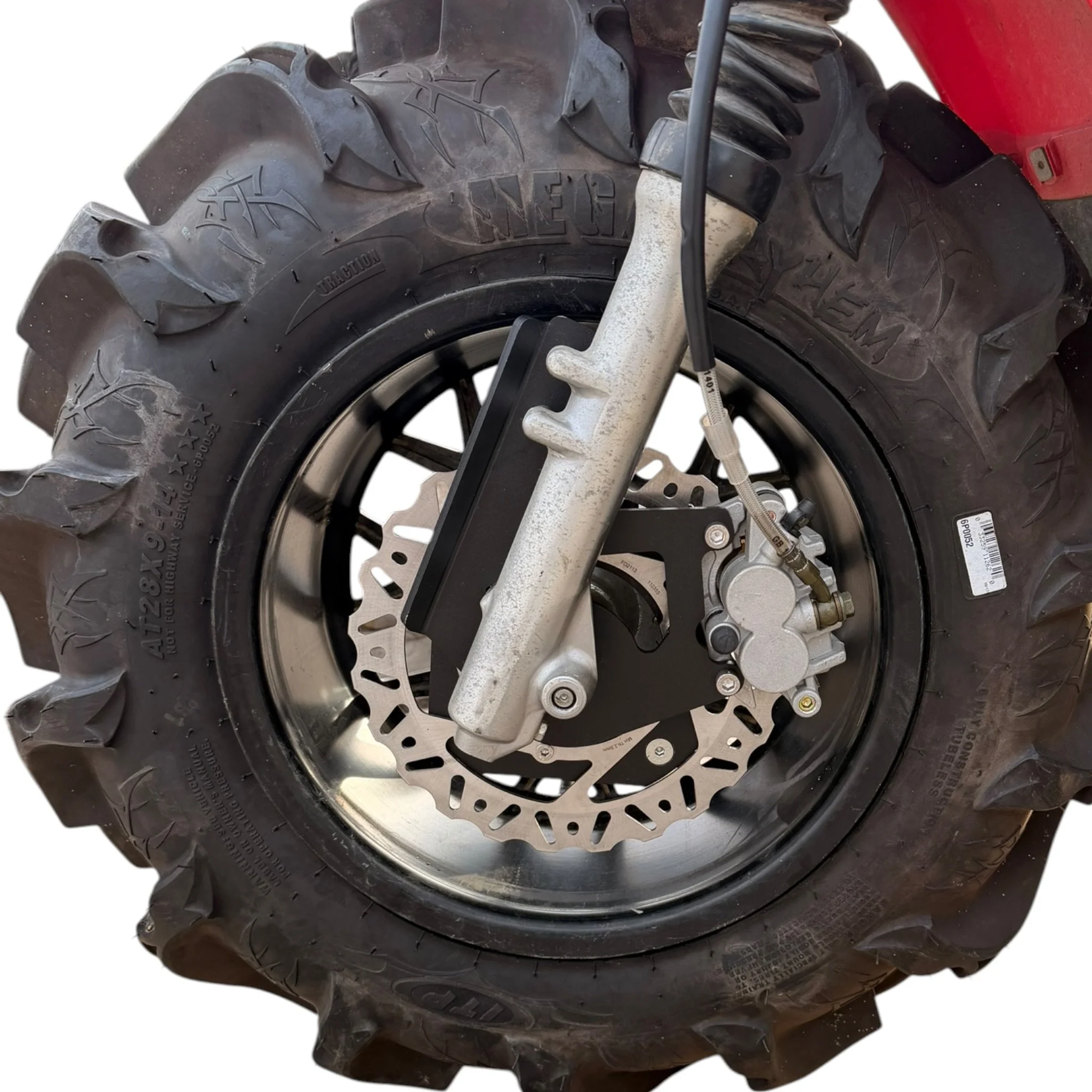

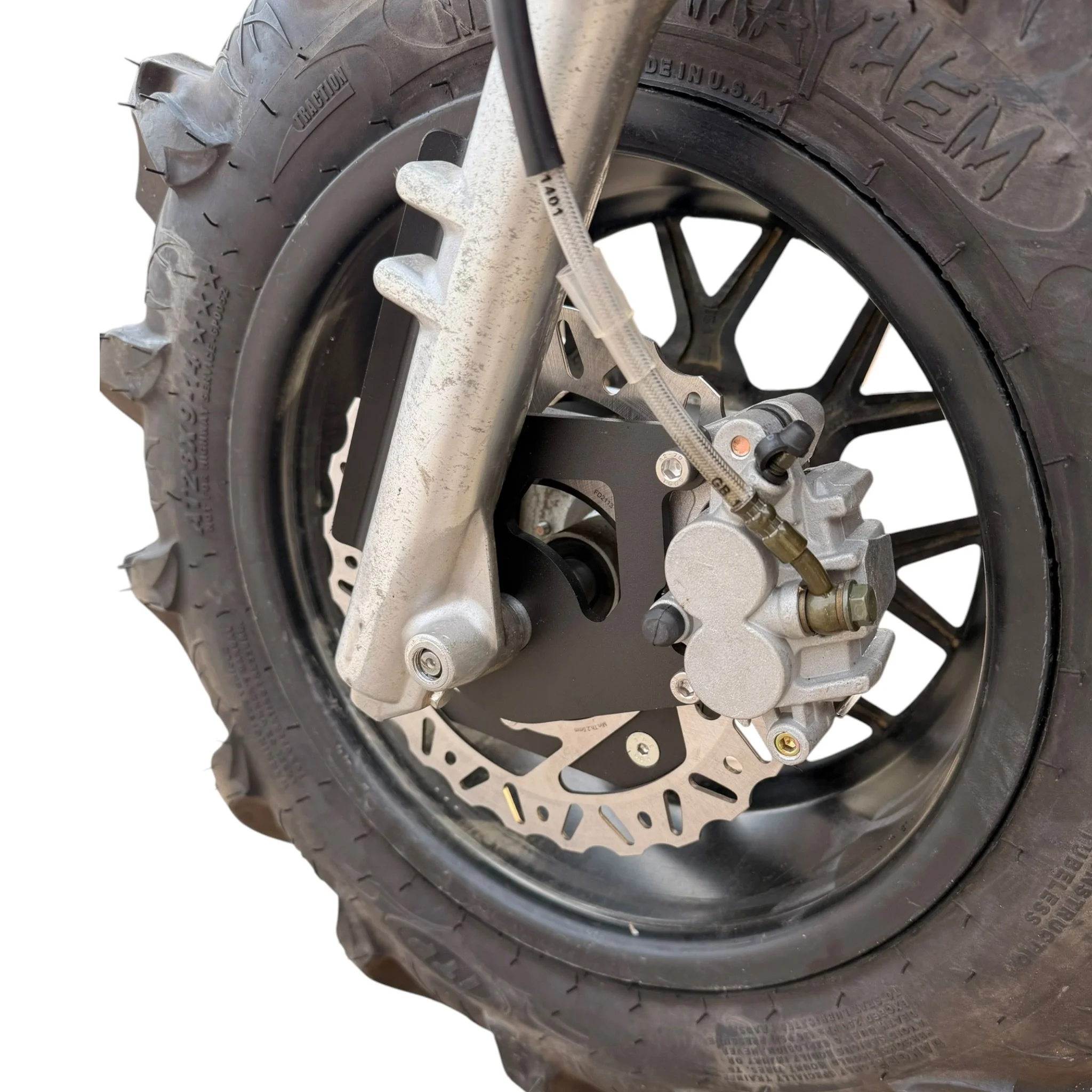

The 250SX front wheel is different from the big red 250ES and the 2+5 offset will not work in the front. I used an ITP Aluminum wheel 5+2 offset with a 1” 4×110 spacer and it worked perfectly. 4+3 offset should also work but that offset it much harder to find.
You'll need the following parts in addition to the Disc Brake Bracket Kit:
-2004-2017 CRF 450 Front Brake Rotor - OEM# 45351-KZ4-J30
-2004-2017 CRF 450 Front Brake Caliper - OEM# 45150-MEN-006
-2004-2017 CRF 450 Front Brake Hose - OEM# 45125-MEN-003
-Honda Rancher 350 Master Cylinder Brake Lever - OEM# 45510-5-671
Thank you for choosing Swamp Outlaw for all your Custom parts!
